압력 분포 측정용 싱글 셀 센서 시리즈
Pressure mappping Single-Cell Sensor Series
PSC-20
For use in general purpose applications.
Physical Specification
압력센서 두께 (Thickness) - 0.23 mm
압력센서 재질 (Substrate) - 폴리에스테르(Polyester)
커넥션 (Connection)- 3pin - 2.54 mm pitch
압력센서 길이 (Length) - 50 mm | 100 mm | 150mm (선택가능)
동작 온도 (Operating temperature) - -10 ~ +60 °C
압력센서 영역 (Sensing Area) : 10pi | 15pi | 20pi (선택가능)

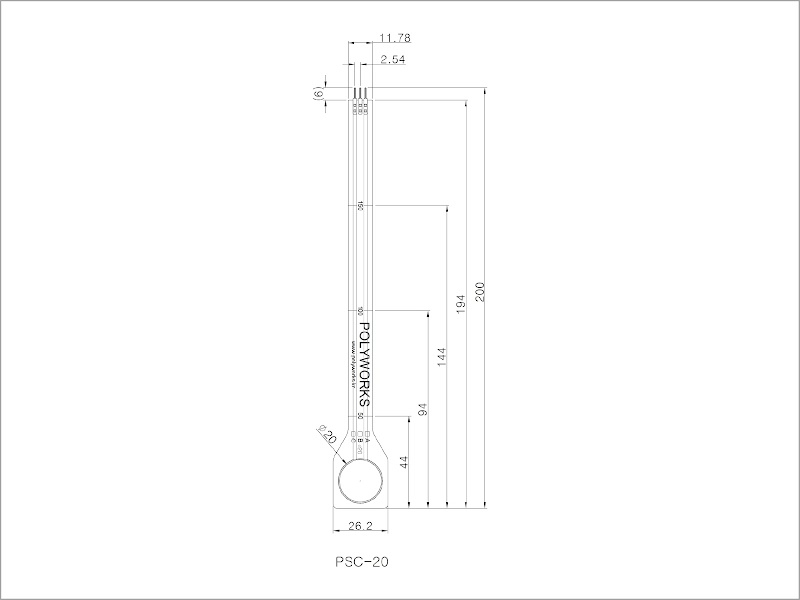

넓이 (Width) : Figure1
Electric Specification
Pressur Range - ~200 N
Repeatability - ±5%
Part to Part Distribution Criteria - ±25%
No load resistance - 5M ohm
Drift Range - < 3% (in log Scale)
Operating Temp Range -20°C ~ +70°C
Force Resolution - Continuous
Sensor Structure & Characteristics
Sensor Structure
Sensor Characteristics Example
Sensor Specification
압력센서 형태 (Type) - Thru
압력측정 범위 (Pressure Range) - ~20 mpa
동작 온도 (Operating temperature) - -10 ~ +60 °C
드라이빙 서킷 (Driving Circuit) - PSD, Arduino Kit
